History of Steering Wheel
The first automobiles were steered with a tiller, but in 1894 Alfred Vacheron took part in the Paris–Rouen race with a Panhard 4 hp model which he had fitted with a steering wheel. That is believed to be one of the earliest employments of the principle. From 1898 the Panhard et Levassor cars were equipped as standard with steering wheels. C S Rolls introduced the first car in Britain fitted with a steering wheel when he imported a 6 hp Panhard from France in 1898.Arthur Constantin Krebs replaced the tiller with an inclined steering wheel for the Panhard car he designed for the Paris-Amsterdam race which ran 7–13 July 1898. In 1898, Thomas B. Jeffery and his son, Charles T. Jeffery, developed two advanced experimental cars featuring a front-mounted engine, as well as a steering wheel that was mounted on the left-hand side.However, the early automaker adopted a more "conventional" rear-engine and tiller-steering layout for its first mass-produced Ramblers in 1902. The following year, the Rambler Model E was largely unchanged, except that it came equipped with a tiller early in the year, but with a steering wheel by the end of 1903. By 1904, all Ramblers featured steering wheels. Within a decade, the steering wheel had entirely replaced the tiller in automobiles. At the insistence of Thomas B. Jeffery, the position of the driver was also moved to the left-hand side of the car during the 1903 Rambler production.Most other car makers began offering cars with left-hand drive in 1910.Soon after, most cars in the U.S. converted to left hand drive.
Steering wheels for passenger automobiles are generally circular, and are mounted to the steering column by a hub connected to the outer ring of the steering wheel by one or more spokes (single spoke wheels being a rather rare exception). Other types of vehicles may use the circular design, a butterfly shape, or some other shape. In countries where cars must drive on the left side of the road, the steering wheel is typically on the right side of the car (right-hand drive or RHD); the converse applies in countries where cars drive on the right side of the road (left-hand drive or LHD). In addition to its use in steering, the steering wheel is the usual location for a button to activate the car's horn. Modern automobiles may have other controls, such as cruise control, audio system and telephone controls, as well as paddle shifters, built into the steering wheel to minimize the extent to which the driver must take their hands off the wheel. The steering wheels were rigid and mounted on non-collapsible steering columns. This arrangement increased the risk of impaling the driver in case of a severe crash. The first collapsible steering column was invented in 1934 but was never successful marketed. By 1956, Ford came out with a safety steering wheel that was set high above the post with spokes that would flex, but the column was still ridged. In 1968, United States regulations (FMVSS Standard No. 204) were implemented concerning the acceptable rearward movement of the steering wheel in case of crash. Collapsible steering columns were required to meet that standard. Power steering gives the driver an easier means by which the steering of a car can be accomplished. Modern power steering has almost universally relied on a hydraulic system, although electrical systems are steadily replacing this technology. Mechanical power steering systems (e.g., Studebaker, 1952) have been invented, but their weight and complexity negate the benefits that they provide. While other methods of steering passenger cars have resulted from experiments, for example the "wrist-twist instant steering" Mercury Park Lanes controlled by two 5-inch (127 mm) rings, none have yet been deployed as successfully as the conventional large steering wheel.
TYPES OF STEERING WHEELS
Tilt Wheel
The original Tilt Wheel was developed by Edward James Lobdell in the early 1900s. The seven position Tilt Wheel was made available in several General Motors products in 1963. Originally a luxury option on cars, the tilt function helps to adjust the steering wheel by moving the wheel through an arc in an up and down motion. Tilt Steering Wheels rely upon a ratchet joint located in the steering column just below the steering wheel. By disengaging the ratchet lock, the wheel can be adjusted upward or downward while the steering column remains stationary below the joint. Some designs place the pivot slightly forward along the column, allowing for a fair amount of vertical movement of the steering wheel with little actual tilt, while other designs place the pivot almost inside the steering wheel, allowing adjustment of the angle of the steering wheel with almost no change it its height.
Telescope Wheel
Developed by General Motors Saginaw Steering Gear Division (now Nexteer Automotive), the telescoping wheel can be adjusted to an infinite number of positions in a 3-inch range. The 1955-1957 Ford Thunderbird had a telescoping steering wheel.The Tilt and Telescope steering wheel was introduced as an exclusive option on Cadillac automobiles in 1965.
Adjustable Steering Column
In contrast, an adjustable steering column allows steering wheel height to be adjusted with only a small, useful change in tilt. Most of these systems work with compression locks or electric motors instead of ratchet mechanisms; the latter may be capable of moving to a memorized position when a given driver uses the car, or of moving up and forward for entry or exit.
Swing-away Steering Wheel
Introduced on the 1961 Ford Thunderbird, and made available on other Ford products throughout the 1960s, the Swing-away steering wheel allowed the steering wheel to move nine inches to the right when the transmission selector was in Park, so as to make driver exit and entry easier.
Quick Release Hub Steering Wheel
Some steering wheels can be mounted on a detachable hub a.k.a. a quick release hub. The steering wheel can then be removed without the use of tools, simply by pressing a button. The system is much used in narrow-spaced racing cars, to facilitate the driver getting in and out, and in other cars as well, as an anti-theft device.


BLACK	BLUE	SEA BLUE	COLBOLT

BROWN	TAN	OAK	SAND

BURGUNDY	CHARCOAL	GREY	GREEN

RED	WHITE	YELLOW

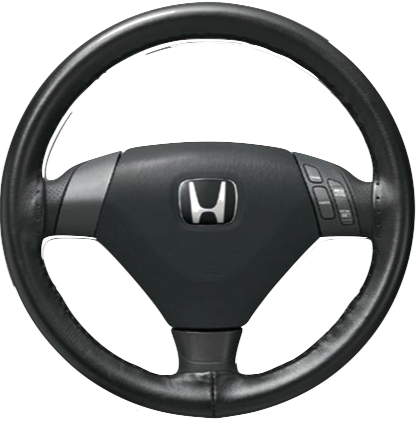

Solid Leather Steering Wrap

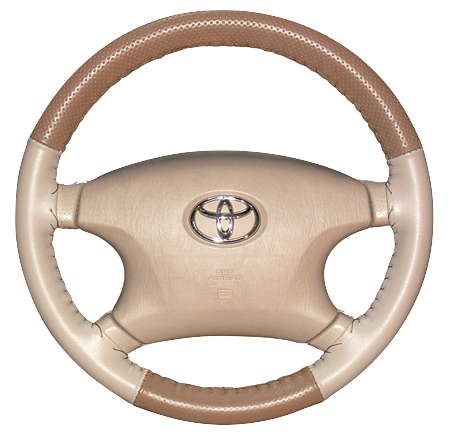

Perforated leather Steering Wrap

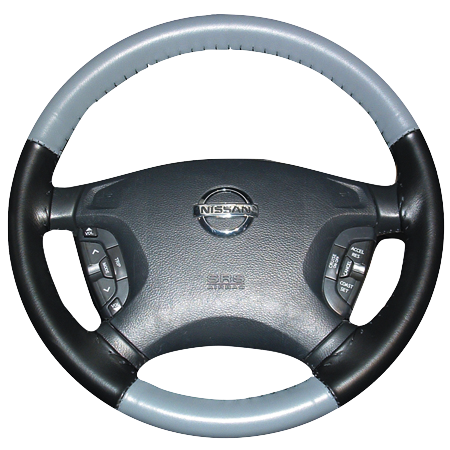

Two Tone Leather Steering Wrap

Plain	Perforated	Two-Tone
